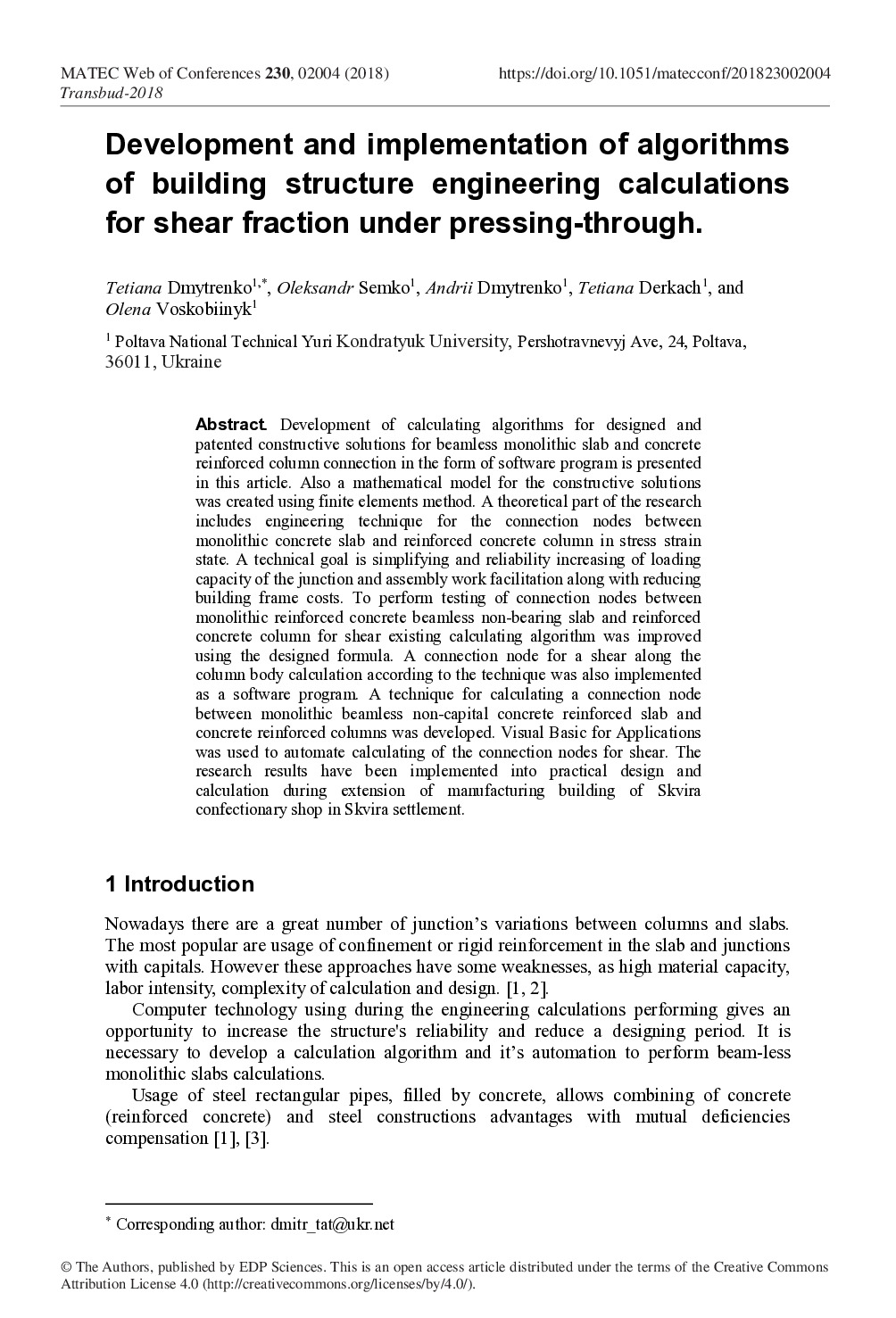

Розробка та впровадження алгоритмів інженерних розрахунків будівельної конструкції для зсувної фракції під тиском

Семко, О.В.

Дмитренко, Т.А.

Деркач, Т.М.

Воскобійник, О.П.

Development of calculating algorithms for designed and patented constructive solutions for beamless monolithic slab and concrete reinforced column connection in the form of software program is presented in this article. Also a mathematical model for the constructive solutions was created using finite elements method. A theoretical part of the research includes engineering technique for the connection nodes between monolithic concrete slab and reinforced concrete column in stress strain state. A technical goal is simplifying and reliability increasing of loading capacity of the junction and assembly work facilitation along with reducing building frame costs. To perform testing of connection nodes between monolithic reinforced concrete beamless non-bearing slab and reinforced concrete column for shear existing calculating algorithm was improved using the designed formula. A connection node for a shear along the column body calculation according to the technique was also implemented as a software program. A technique for calculating a connection node between monolithic beamless non-capital concrete reinforced slab and concrete reinforced columns was developed. Visual Basic for Applications was used to automate calculating of the connection nodes for shear. The research results have been implemented into practical design and calculation during extension of manufacturing building of Skvira confectionary shop in Skvira settlement.

будівельні констркукції

algorithm

building construction

алгоритм

стискання
